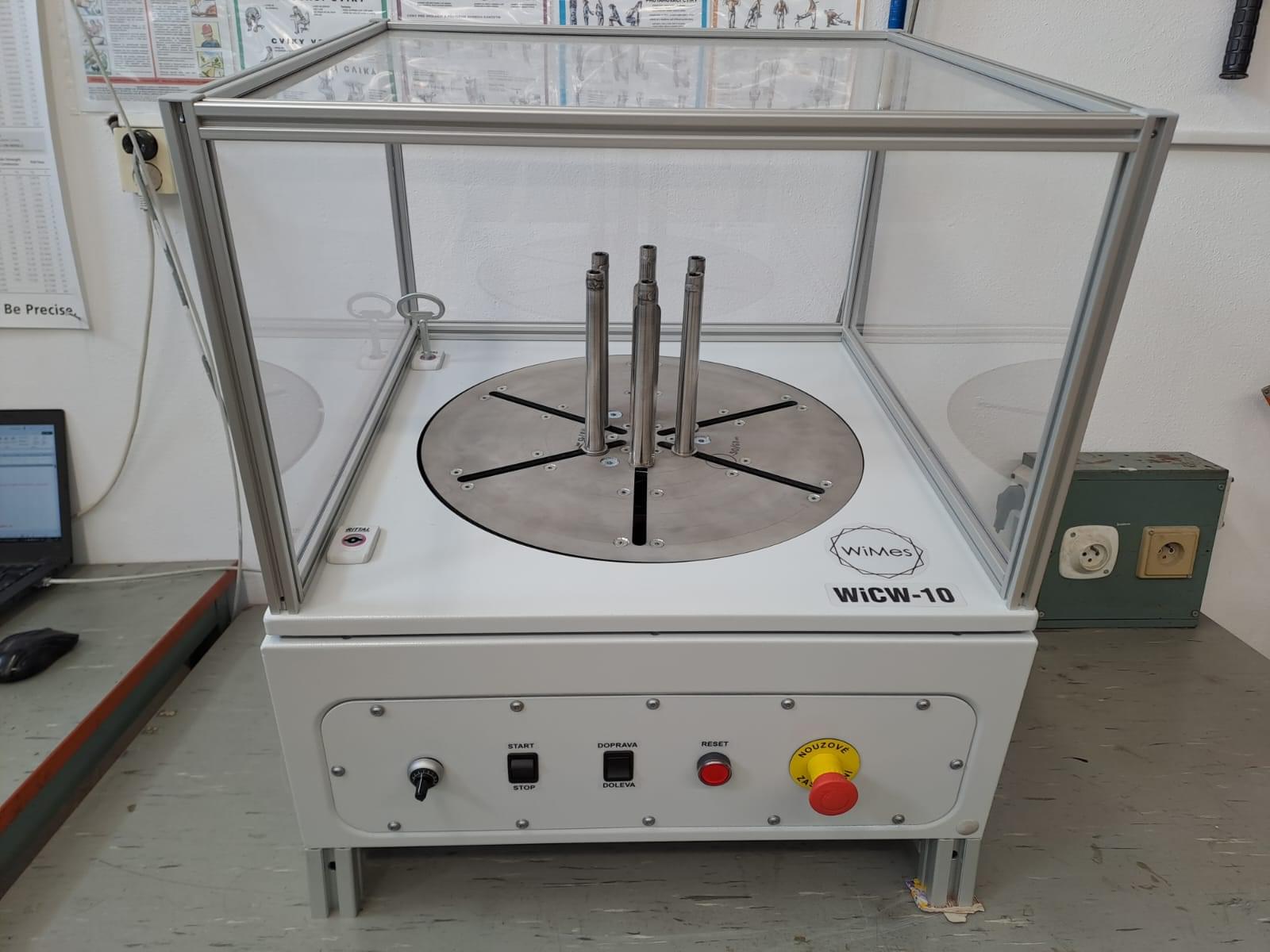

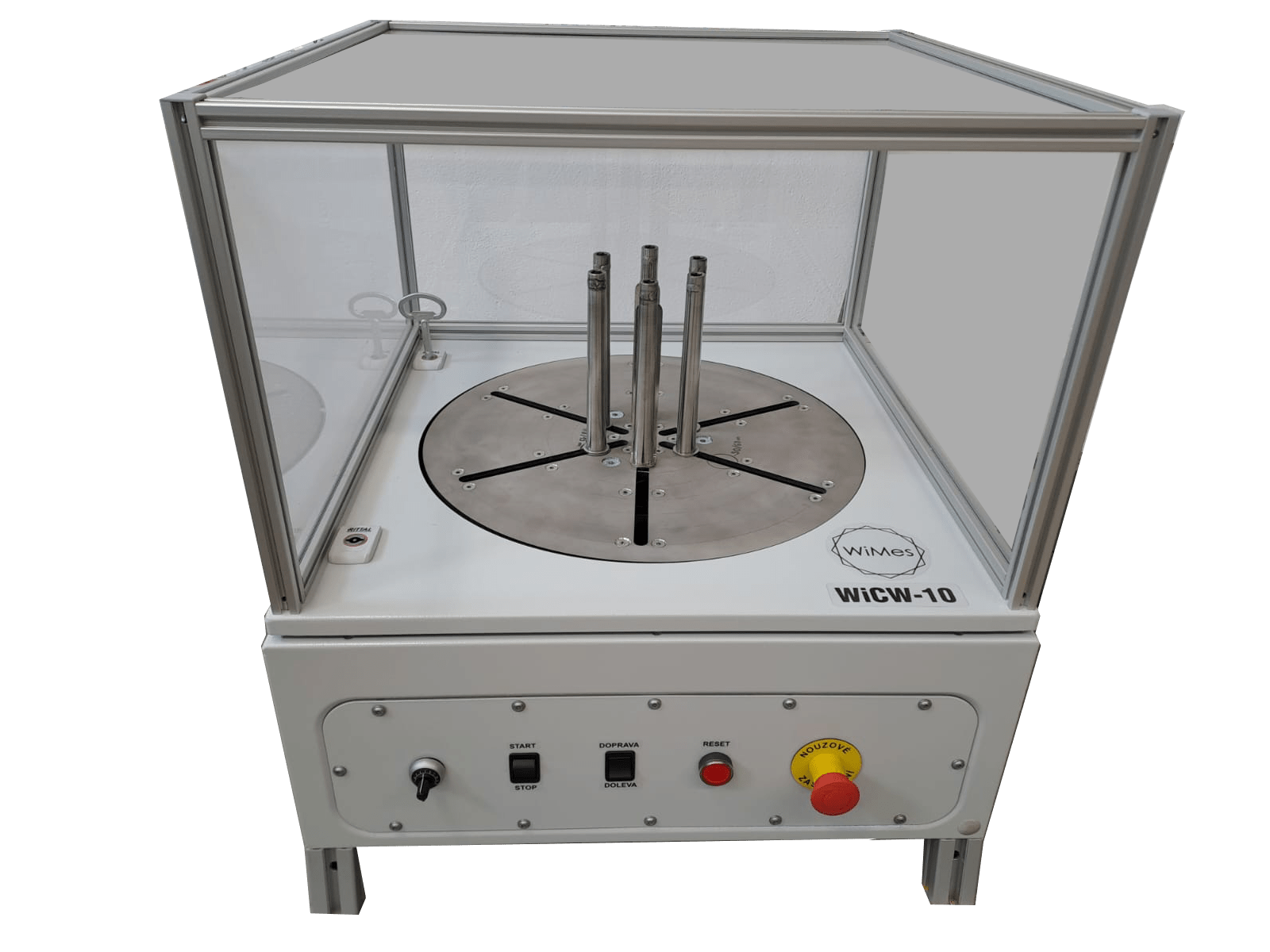

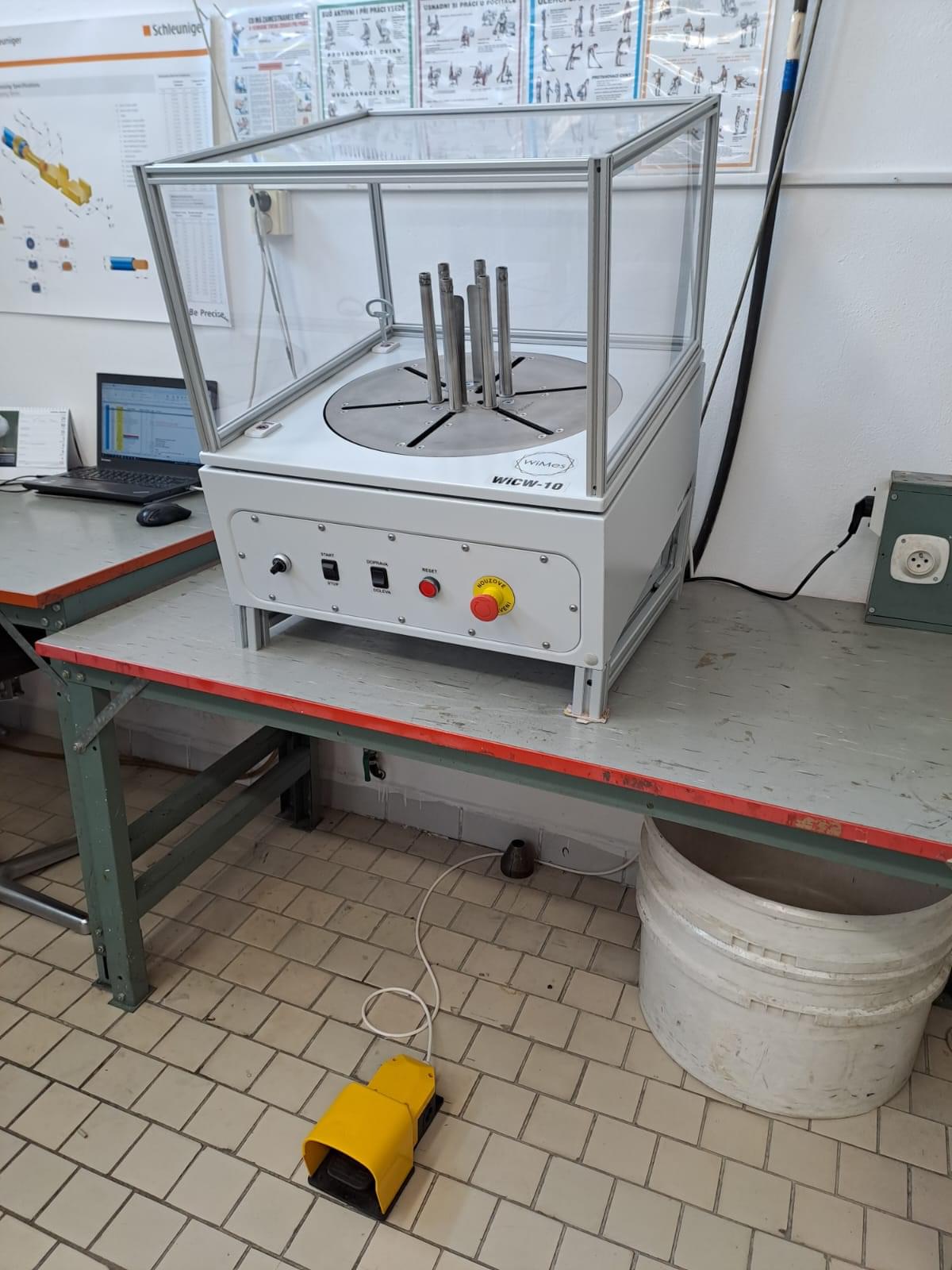

WiCW - 10
Machine for making coils

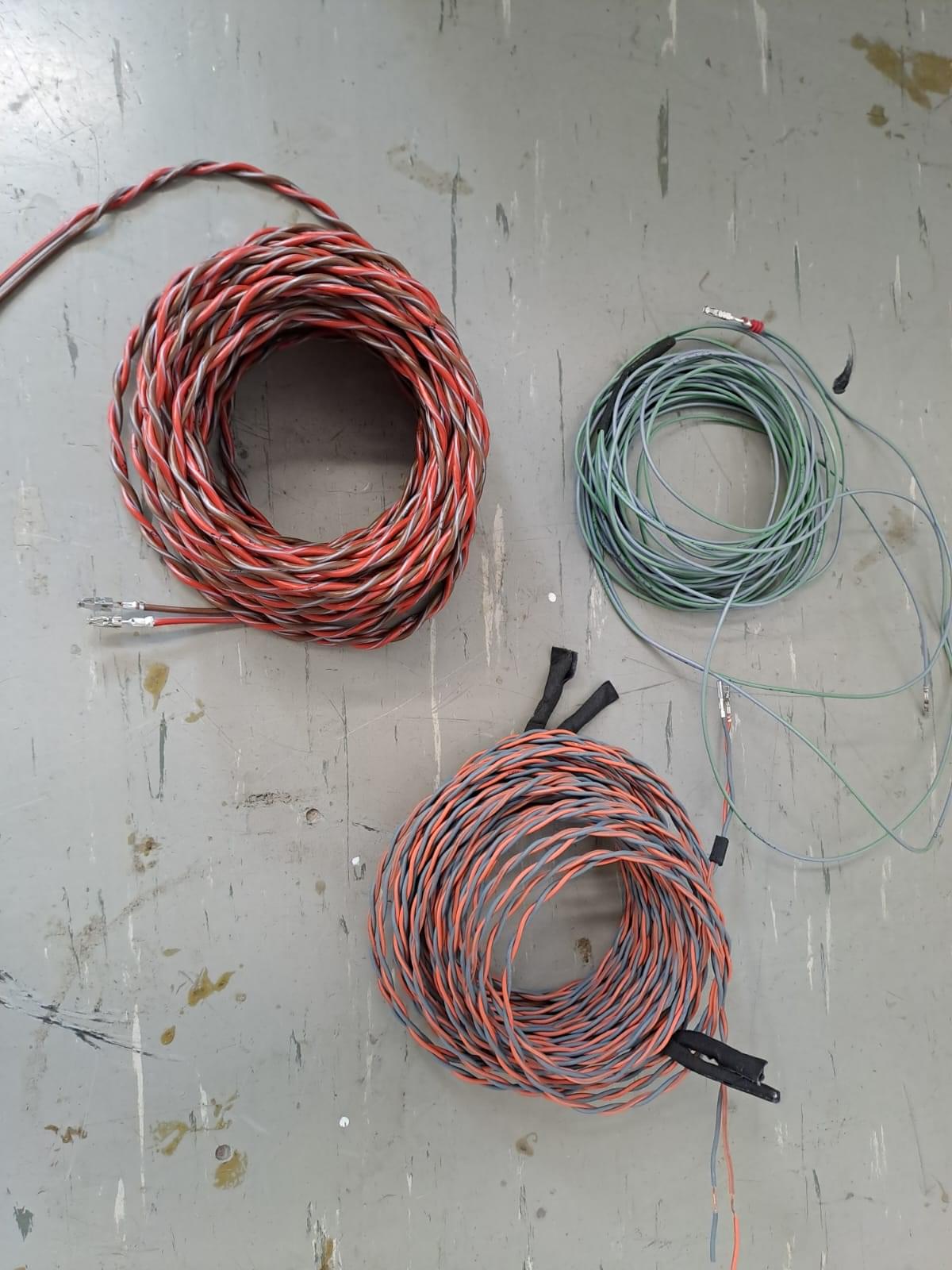

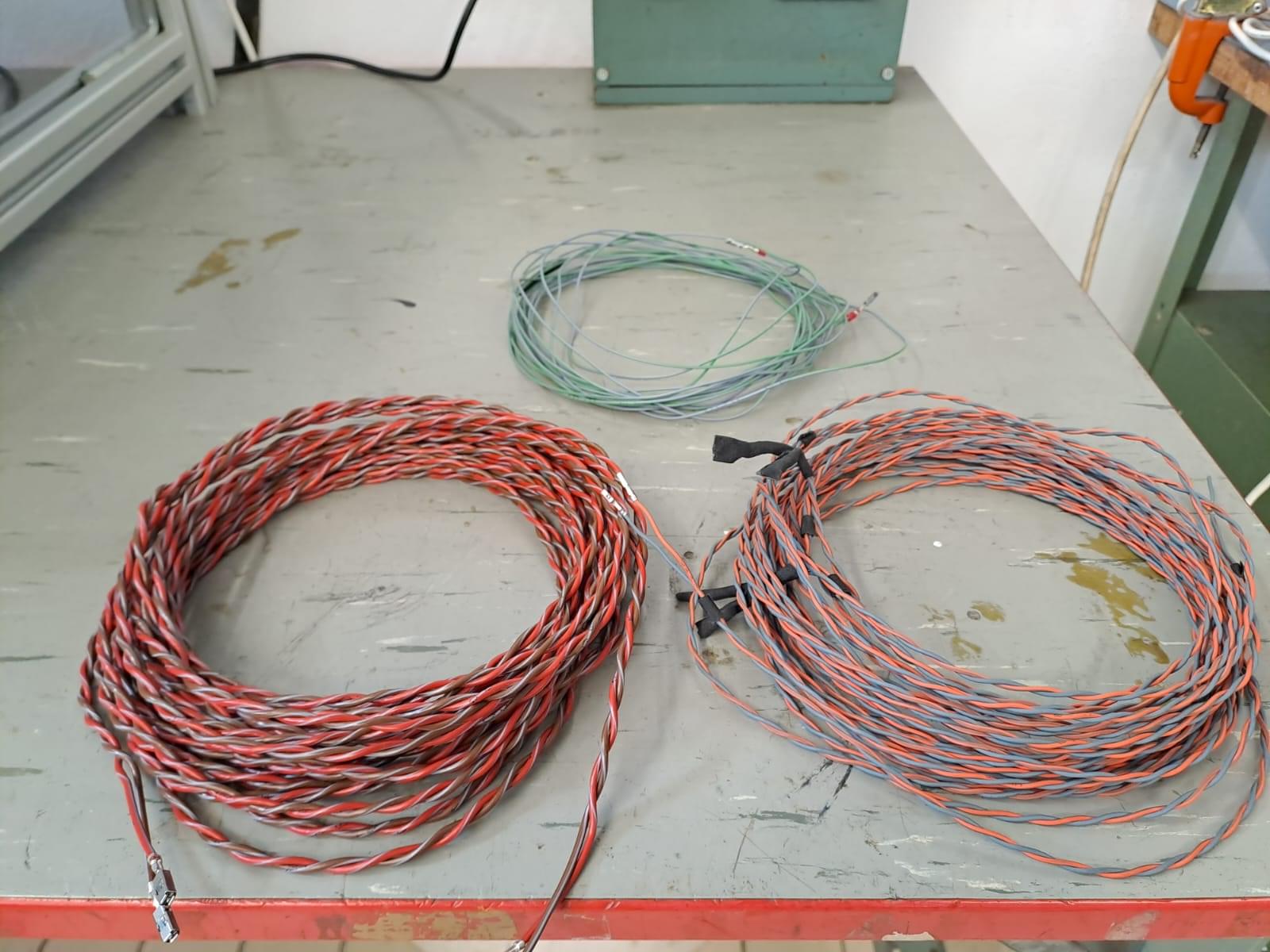

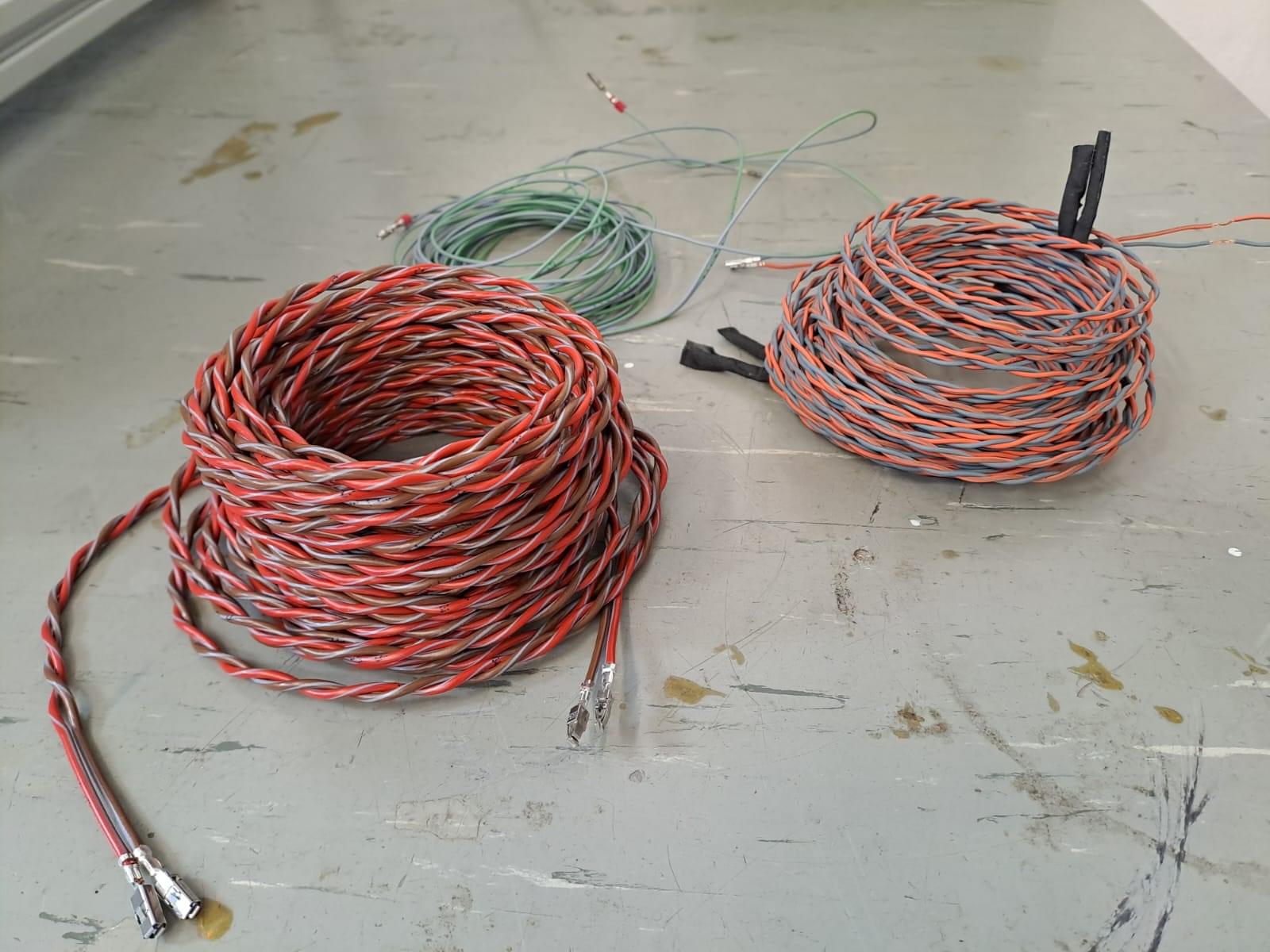

Machine for making coils of wires/cables/cable harness
Parameters:
- motorized equipment for winding wires/cables/cable harness
- range of material 2-20mm (other on request)
- maximum coils load 15kg

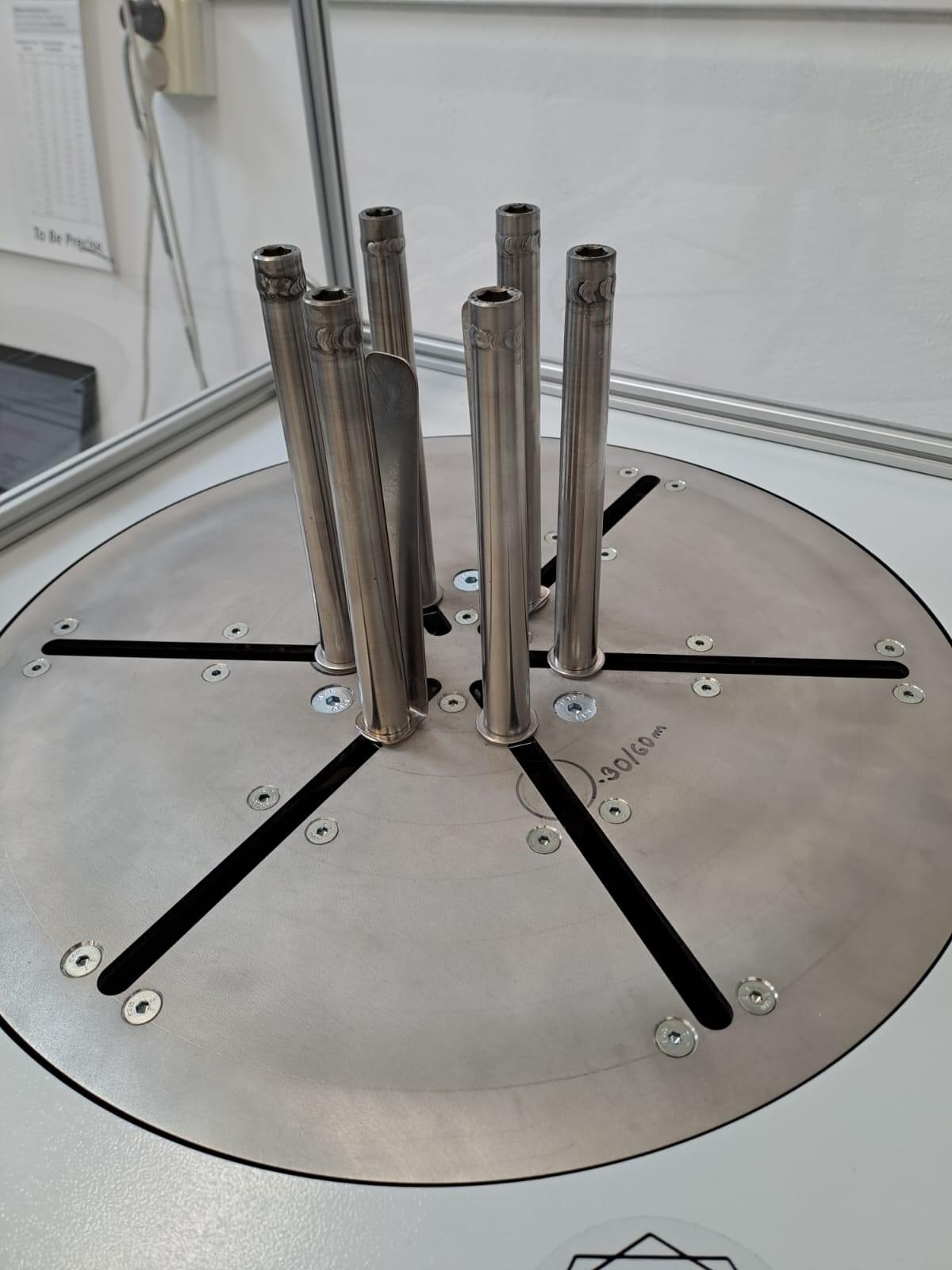

- the machine has 6x pikes
- the possibility to setup the spikes in the range 80-350mm
- plate diameter 450mm

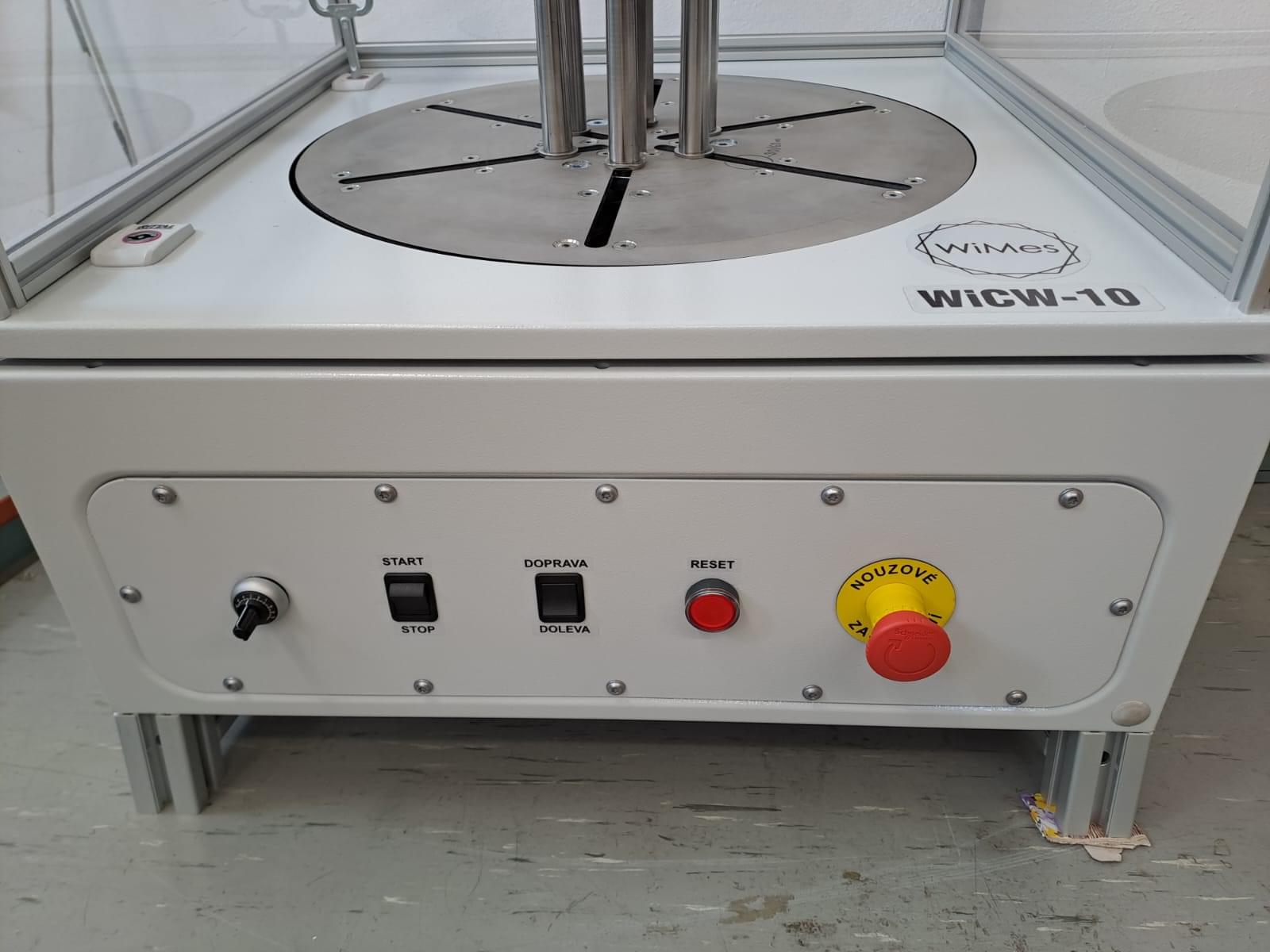

- safety is done by friction gear, invertor overload, safety pedal

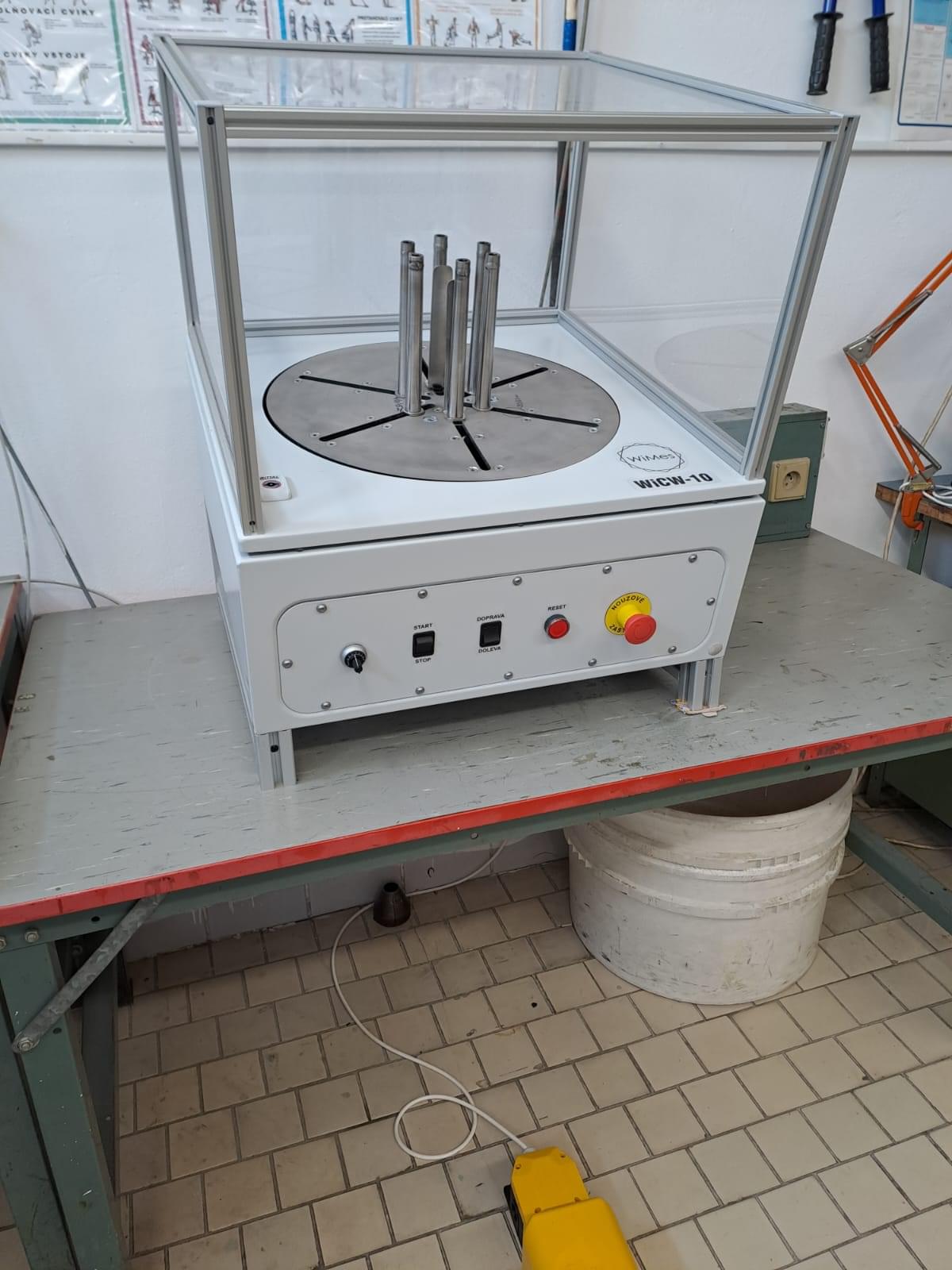

- pedal control with safety function
- the speed can be adjusted by potenciometer on the machine
- El. connection 230V/50-60HZ
- CE is provided
Made in Czech republic
Options:
- extra safety option on request
